Footprint & Order Flow: The Complete Guide

What order flow actually is

Order flow is not a strategy, an indicator, or a school of analysis. It is a category of data: the record of individual transactions, each one tagged with which side of the spread it happened on.

A standard chart aggregates that record into four numbers per bar — open, high, low, close — plus total volume. Enormous amounts of information are discarded in that compression. Order flow tooling works one level down, from the transactions themselves, and reconstructs what the aggregation threw away: at which prices trading happened, in what size, and which side was crossing the spread to make it happen.

The practical consequence is narrow and specific. It does not tell you what price will do. It tells you what price just did, in more detail than a candle can express — and in particular, it separates events that look identical on a candle chart.

The one thing your data must have

Every order flow measurement depends on knowing, for each trade, whether the buyer or the seller was the aggressor — who crossed the spread. Feeds that publish this are common in crypto and futures markets. Standard end-of-day equity data usually does not carry it, which is why footprint work is concentrated in those two markets rather than spread evenly across all of them.

Without an aggressor side, none of what follows can be calculated. It is worth checking before investing time in the method. Charting platforms that compute these measurements from their own feed remove that step — TradingView, for example, offers a Volume footprint chart type on Premium plans and above.

Delta: the base measurement

Every trade has a buyer and a seller, always, in equal number. “More buyers than sellers” is therefore a meaningless phrase, and delta is the measurement that replaces it with a real question: which side was impatient enough to cross the spread?

Delta counts urgency, not outcome. A positive reading means the buying side did more of the crossing during that bar — not that buyers outnumbered sellers, and not that they were right. The full definition, including the four ways it is commonly misread, is in What Is Delta in Trading.

The footprint: where the number is built

Delta as a single figure tells you the net result for a bar. The footprint shows how that result was assembled, price level by price level, inside the candle.

Reading down the right-hand column — 486, 530, 604 against 118, 142, 163 — the sequence is plain: buyers lifting the offer at level after level. Swap those two columns and you get an identical candle built by the opposite behaviour. That is the gap order flow exists to close, and it is worked through in Footprint Charts Explained.

Cumulative delta and divergence

Cumulative delta — CVD — is a running total of delta across bars, the way a balance accumulates. Read alone it is a slow-moving line. Read against price, it becomes a comparison: how much aggression was required to produce the progress price made.

That disagreement is what traders mean by divergence. It is a description of effort expended, not a forecast of what follows — a distinction worth holding onto, because divergence is the reading most often over-claimed. The detail is in CVD Divergence.

Absorption: aggression that fails

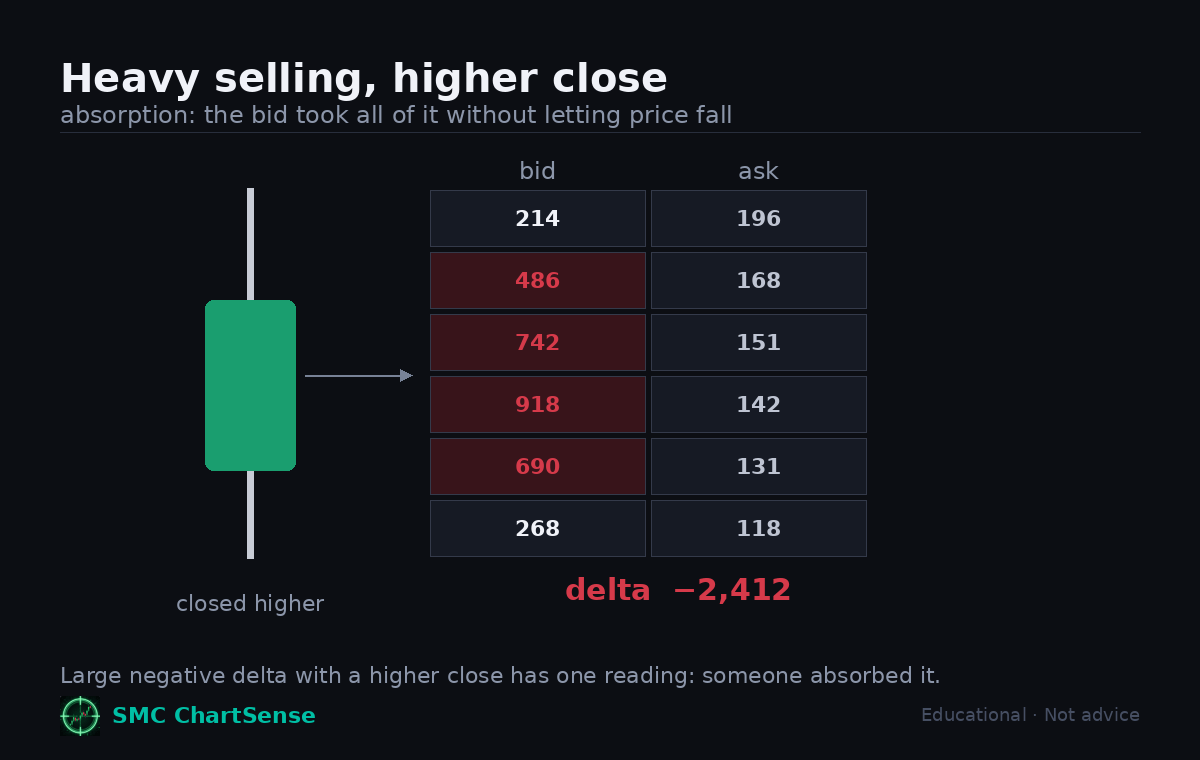

The most striking order flow reading is the one where a measurement and price openly contradict each other: heavy, repeated selling into the bid, and a bar that closes higher anyway.

On a candle chart, that bar is unremarkable — a small body somewhere in a range. On the footprint it is unmistakable: aggressive sellers hitting the bid at every level, and a passive buyer absorbing all of it without letting price fall. The concept, and the effort-versus-result framing underneath it, is covered in Absorption.

Volume profile: where trading concentrated

Delta, footprint and CVD all answer questions about aggression. Volume profile answers a different one: at which prices did most of the trading actually happen?

Instead of plotting volume against time in a bar beneath the chart, a profile plots it against price — a horizontal distribution showing where activity clustered and where it thinned out. Areas of heavy participation and areas price moved through quickly are visible at a glance, and they describe two different kinds of price territory. That is the subject of Volume Profile Basics.

Putting it together on a real chart

Each measurement above is clearest on its own diagram. On a real chart they arrive together, and usually at a place that already matters structurally — a zone price has returned to, a level it is testing. That is where the footprint earns its keep: the candle shows that a test happened, and the cells show what the test was made of.

Our first read in that format, Order Block Footprint Read, follows a demand order block through three retests and opens the decisive bars: probes that traded beneath the zone on real selling and closed back inside, a stacked bid-side press that held, and the stacked ask-side bars that turned each retest. Every concept in this guide — delta, the diagonal read, stacking, absorption — appears in it on one chart.

Its mirror, Supply Zone Footprint Read, follows a supply zone retested by bars of strongly positive delta — heavy buying printed inside the zone, one bar pierced its top, and none closed above it. Read together, the two show the same effort-versus-result pattern from both sides.

The third, Demand Zone Footprint Read: A Zone Born From Absorption, opens the bar a zone was drawn on — the heaviest selling of its chart, closing well off its low — and a retest in which the selling faded bar by bar: absorption and exhaustion on one chart.

The fourth, Supply Zone Footprint Read: Eight Approaches, One Overrun, counts the rallies that reached a supply zone against the ones that only approached it — eight approaches, three touches — and opens the bar that overran the zone’s top by twenty ticks and closed back inside, with its heaviest row on the boundary itself.

The fifth, Supply Zone Footprint Read: Ten Hours Inside, and the Bar That Drew the Next Zone, follows a visit that lasted most of a day — twenty-five bars inside a supply zone, two prints one tick above its top, no close above it — and opens the quiet bar that ended the visit and became a second zone inside the first.

What order flow does not do

This section exists because the topic attracts more overstatement than almost any other in technical analysis, and a guide that omits it is not a guide.

It does not predict the next bar

Every measurement described here is calculated from transactions that have already occurred. Delta, CVD and absorption are descriptions of completed activity. None of them contain information about the future, and any presentation that implies otherwise is selling something.

It does not show you anyone’s intentions

Order flow data records what was transacted, not who transacted it or why. Reading a large absorbing bid as a specific type of participant with a specific plan is interpretation layered on top of the data, not the data itself. The measurement is objective; the story about it is not.

It does not work without context

The same delta reading means different things in the middle of a range and at its boundary, on a quiet session and a violent one, on a one-minute bar and a fifteen-minute one. A reading detached from location and conditions is a number, not information.

It is not a shortcut

Order flow adds detail, and detail adds decisions. Traders who struggled to read a candle chart generally do not find that a footprint solves the problem — it gives them more to interpret, not less. The measurements are worth learning; they are not worth learning as an escape from the harder skill underneath.

How to actually learn to read it

Every concept in this guide can be defined in a paragraph and read on a chart in seconds. Neither of those is the hard part. The hard part is judging a reading against its context, quickly, across hundreds of instances until the patterns become recognisable rather than calculated.

That is a repetition problem. Reading explanations builds vocabulary; only exposure to many examples, with feedback each time, builds recognition. Anyone who has learned to read structure on a candle chart already knows this — the first fifty examples are laborious and the five hundredth is instant.

The practical approach is the same one that works for chart reading generally: study one concept at a time, look at many instances of it, commit to a reading before checking, and then check — against a stated rule, so a wrong answer teaches something specific rather than leaving a vague impression.
